• Pole-Position：1P2T,2P2T,Momentary
and Lock Type are available • Contact Rating：30VDC,0.3A
• Contact Resistance：30mΩ Max.1.5VDC;100mA,
By Method of Voltage DROP • Insulation Resistance：100MΩ Min,500VDC
• Dielectric Strength：Breakdown is not Allowable;
500VAC for 1 minute • Operation Force：1P2P-200±100gf;
2P2T-250±100gf • Operation Life：10,000 cycles
• Operation Temperation：-20℃ ~70℃

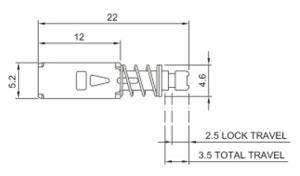

• Total Travel：2.5±0.3mm
|
 |
   |
| Part Number | Contact Rating | Contact Resistance | Insulation Resistance | Dielectric Strength | Operation Force | Operation Life | Operation Temp. | Total Travel | PDF下載 |
|---|---|---|---|---|---|---|---|---|---|
| R0198A-B1N | 30VDC,0.3A | 30mΩ Max.1.5VDC;100mA,By Method of Voltage DROP | 100MΩ Min,500VDC | Breakdown is not Allowable;500VAC for 1 minute | 1P2P-200±100gf; 2P2T-250±100gf | 10,000 cycles | -20℃ ~70℃ | 2.5±0.3mm | 暫無 |
| R0198A-B2N | 30VDC,0.3A | 30mΩ Max.1.5VDC;100mA,By Method of Voltage DROP | 100MΩ Min,500VDC | Breakdown is not Allowable;500VAC for 1 minute | 1P2P-200±100gf; 2P2T-250±100gf | 10,000 cycles | -20℃ ~70℃ | 2.5±0.3mm | 暫無 |
