• RD16-A1 • RD16-A2 • RD16-A3
• RD16-A4 • RD16-A5 • RD16-A6 • RD16-D1 • RD16-D2 • RD16-D3
• RD16-D4 • RD16-D5 • RD16-D6 • RD16-C1 • RD16-C5 • RD16-E2
• RD16-F1 • RD16-F4 • RD16-G2 • RD16-G3 • RD16-G4 • RD16-G5
• RD16-G6 • RD16-G7 • RD16-E1 |
 |

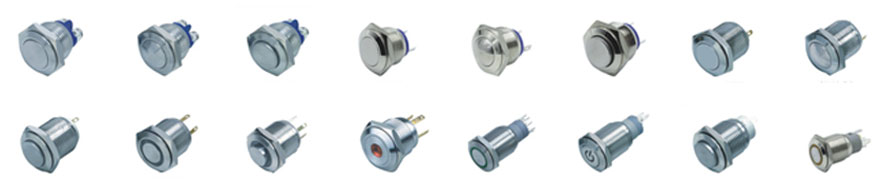

| Part Number | Mounting Hold Size | Switch Rating | Switch Combination | Operation Types | Head Shape | Enclosure Material | Degree of protection | Lamp Type | Head Type | PDF下載 |
|---|---|---|---|---|---|---|---|---|---|---|
| RD16-A1 | φ16mm | 3A/250VAC | 1NO | Resetable | Flat | Nickel plated brass/Stainless stell | IP65,IK08 | / | / | 暫無 |
| RD16-A2 | φ16mm | 3A/250VAC | 1NO | Resetable | Round | Nickel plated brass/Stainless stell | IP65,IK08 | / | / | 暫無 |
| RD16-A3 | φ16mm | 3A/250VAC | 1NO | Resetable | High Flat | Nickel plated brass/Stainless stell | IP65,IK08 | / | / | 暫無 |
| RD16-A4 | φ16mm | 2A/36VDC | 1NO | Resetable | Flat | Nickel plated brass/Stainless stell | IP67,IK08 | / | / | 暫無 |
| RD16-A5 | φ16mm | 2A/36VDC | 1NO | Resetable | Round | Nickel plated brass/Stainless stell | IP67,IK08 | / | / | 暫無 |
| RD16-A6 | φ16mm | 2A/36VDC | 1NO | Resetable | High Flat | Nickel plated brass/Stainless stell | IP67,IK08 | / | / | 暫無 |
| RD16-D1 | φ16mm | 2A/36VDC | 1NO | Resetable | Flat | Nickel plated brass/Stainless stell | IP67,IK08 | / | / | 暫無 |
| RD16-D2 | φ16mm | 2A/36VDC | 1NO | Resetable | Round | Nickel plated brass/Stainless stell | IP67,IK08 | / | / | 暫無 |
| RD16-D3 | φ16mm | 2A/36VDC | 1NO | Resetable | High Flat | Nickel plated brass/Stainless stell | IP67,IK08 | / | / | 暫無 |
| RD16-D4 | φ16mm | 2A/36VDC | 1NO | Resetable | Flat | Nickel plated brass/Stainless stell | IP65,IK08 | / | Ring Illuminated | 暫無 |
| RD16-D5 | φ16mm | 2A/36VDC | 1NO | Resetable | High Flat | Nickel plated brass/Stainless stell | IP65,IK08 | / | Ring Illuminated | 暫無 |
| RD16-D6 | φ16mm | 2A/36VDC | 1NO | Resetable | Flat | Nickel plated brass/Stainless stell | IP65,IK08 | / | Dot Illuminated | 暫無 |
| RD16-C1 | φ16mm | 3A/250VAC | 1NO 1NC/2NO 2NC | Resetable Self-locking | Flat | Nickel plated brass/Stainless stell | IP67,IK10 | Ring Illuminated | / | 暫無 |
| RD16-C5 | φ16mm | 3A/250VAC | 1NO 1NC/2NO 2NC | Resetable Self-locking | Flat | Nickel plated brass/Stainless stell | IP67,IK10 | Character Illuminated | / | 暫無 |
| RD16-E2 | φ16mm | 2A/36VDC | 1NO | Self-locking | High Flat | Nickel plated brass/Stainless stell | IP67,IK08 | / | / | 暫無 |
| RD16-F1 | φ16mm | 5A/250VAC | 1NO 1NC | Resetable Self-locking | Flat | Nickel plated brass/Stainless stell | IP67,IK10 | / | Ring Illuminated | 暫無 |
| RD16-F4 | φ16mm | 5A/250VAC | 1NO 1NC | Resetable Self-locking | Flat | Nickel plated brass/Stainless stell | IP67,IK10 | / | Ring Illuminated | 暫無 |
| RD16-G2 | φ16mm | 3A/250VAC | 1NO 1NC/2NO 2NC | Resetable Self-locking | High Flat | Nickel plated brass/Stainless stell | IP67,IK10 | Ring Illuminated | / | 暫無 |
| RD16-G3 | φ16mm | 3A/250VAC | 1NO 1NC/2NO 2NC | Resetable Self-locking | Flat | Nickel plated brass/Stainless stell | IP67,IK10 | Dot Illuminated | / | 暫無 |
| RD16-G4 | φ16mm | 3A/250VAC | 1NO 1NC/2NO 2NC | Resetable Self-locking | Round | Nickel plated brass/Stainless stell | IP67,IK10 | Dot Illuminated | / | 暫無 |
| RD16-G5 | φ16mm | 3A/250VAC | 1NO 1NC/2NO 2NC | Resetable Self-locking | Flat | Nickel plated brass/Stainless stell | IP67,IK10 | Character Illuminated | / | 暫無 |
| RD16-G6 | φ16mm | 3A/250VAC | 1NO 1NC/2NO 2NC | Resetable Self-locking | Flat | Nickel plated brass/Stainless stell | IP67,IK10 | / | / | 暫無 |
| RD16-G7 | φ16mm | 3A/250VAC | 1NO 1NC/2NO 2NC | Resetable Self-locking | High Flat | Nickel plated brass/Stainless stell | IP67,IK10 | / | / | 暫無 |
| RD16-E1 | φ16mm | 2A/36VDC | 1NO | Self-locking | Flat | Nickel plated brass/Stainless stell | IP67,IK08 | / | / | 暫無 |
