Home ? Product Center ? Other ? Switch ? Tactile Switch ? RTS(M)(J)(H)(U)W-6 ?
The tact switch is also called a push button switch. When used to meet the operating force, the pressure switch function is closed and connected to the switch operation direction. When the pressure is withdrawn, the switch will be disconnected. Its internal structure is realized by the force change of metal elastic fragments.
The tact switch consists of: insert, base, shrapnel, button, cover plate. The waterproof tact switch adds a layer of polyimide film on the shrapnel. The tact switch has small contact resistance and accurate operation error. Advantages in terms of diversification of specifications.

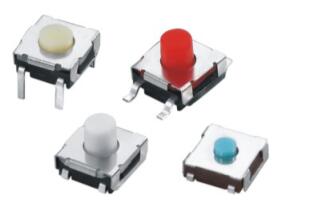

Dust-proof Tactile Switches RTS(M)(J)(H)(U)W-6

•  Contact Resistance100mΩ max
•  Insulation Resistance100MΩmin.500VDC
•  Dielectric Strength250VAC/1 min
•  Electrical Life500,000cycles min
•  Storage Temperature-30℃ to +80℃
•  Contact Arrangement:1 pole 1throw
            RTS(M)(J)(H)(U)W-6實拍圖 輕觸開關結構圖  密封型開關結構圖   密封型輕觸開關側面結構圖



Part Number Contact Resistance Insulation Resistance Dielectric Strength Electrical Life Storage Temp Contact Arrangement Download
RTSMW-6 100mΩ max 100MΩmin.500VDC 250VAC/1 min 500,000cycles min -30℃ to +80℃ 1 pole 1throw NULL
RTSJW-6 100mΩ max 100MΩmin.500VDC 250VAC/1 min 500,000cycles min -30℃ to +80℃ 1 pole 1throw NULL
RTSHW-6 100mΩ max 100MΩmin.500VDC 250VAC/1 min 500,000cycles min -30℃ to +80℃ 1 pole 1throw NULL
RTSUW-6 100mΩ max 100MΩmin.500VDC 250VAC/1 min 500,000cycles min -30℃ to +80℃ 1 pole 1throw NULL
